Features
3-SPEED HIGH PERFORMANCE BLOWER
3-speed high performance blower featuring 550 CFM, HVI certified*, offering 1.5 sones level at minimum speed
BUILT-IN LED MODULES
Built-in LED modules provide an even lighting over the cooktop
ULTRA EFFICIENCY HYBRID BAFFLE FILTERS
Ultra efficiency hybrid baffle filters, easy to clean, for optimal grease removal
Specifications
General
Series Name
VCS series
Blower Included
Yes
Airflow
550 CFM

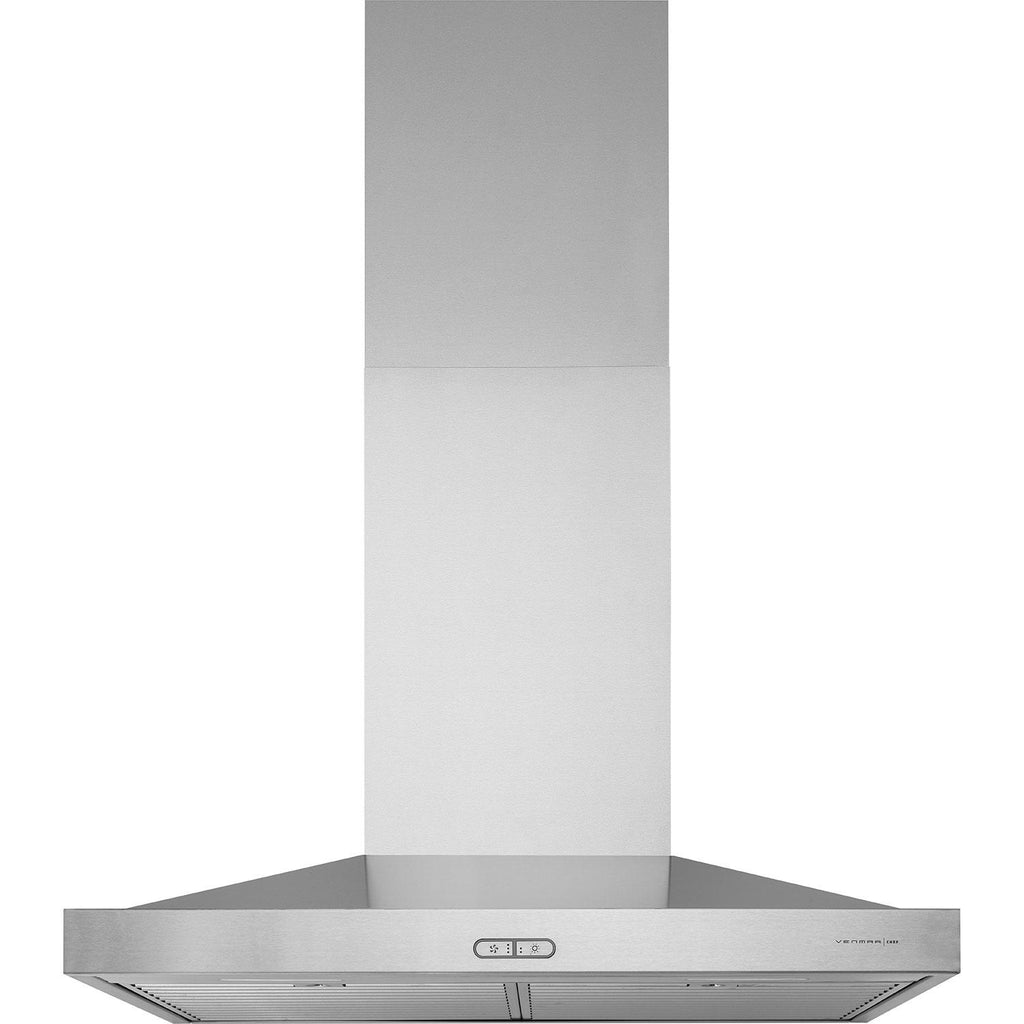

Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel

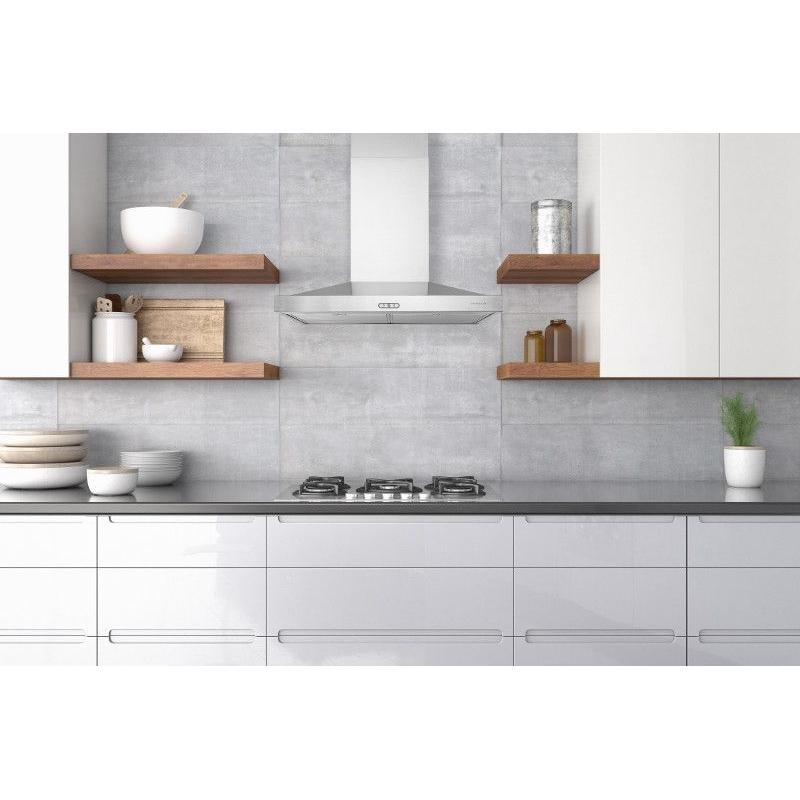

Installation
Wall Mount
Features
Dishwasher-Proof Filters
No
Ducting Information
• Vertical: 6" round or 3¼" X 10"
• Horizontal: 3¼" X 10"
• Horizontal: 3¼" X 10"
Speeds
3
Additional Information
• 1.5 sones level at minimum speed
• 3-speed tap-touch control
• Two ultra efficiency hybrid baffle filters, easy to clean, for optimal grease removal
• Two built-in LED modules provide an even lighting over the cooktop
• Telescopic chimney for 8' to 9' ceiling
• 3-speed tap-touch control
• Two ultra efficiency hybrid baffle filters, easy to clean, for optimal grease removal
• Two built-in LED modules provide an even lighting over the cooktop
• Telescopic chimney for 8' to 9' ceiling
Electrical Information
Information
• 120 Volts
• 60 Hertz
• 3.9 Amps
• 60 Hertz
• 3.9 Amps
Certifications and Approvals
Hvi Certified
Yes
Accessories
Optional
• 63680 stainless steel flue extension for 10' ceiling
• 63685 black stainless steel flue extension for 10' ceiling
• ARP6 airflow reducer for 6" round ducting (limits the air flow of the range hood under 300 cfm)
• ARP310 airflow reducer for 3 ¼" x 10" ducting (limits the air flow of the range hood under 300 cfm)
• 63685 black stainless steel flue extension for 10' ceiling
• ARP6 airflow reducer for 6" round ducting (limits the air flow of the range hood under 300 cfm)
• ARP310 airflow reducer for 3 ¼" x 10" ducting (limits the air flow of the range hood under 300 cfm)
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.31 inch(es) / 13.49 cm
Depth
20 inch(es) / 50.8 cm
Additional Dimensions
Refer to installation manual for more complete detailed dimensions
Warranty
Warranty
• 3 years limited warranty on LED modules and LED driver
• 5 years limited warranty parts and labor
• Refer to installation manual for exact warranty details
• 5 years limited warranty parts and labor
• Refer to installation manual for exact warranty details
UPC
UPC#
772371141179
